SDP 业务规则/自定义触发器/自定义菜单 执行本地脚本详解
一、概要
ServiceDesk Plus(SDP) 支持通过低代码的配置，满足丰富的个性化场景需求。但是对于一些复杂的的场景，如集成第三方系统。需要处理复杂的逻辑，SDP自带的业务规则和自定义触发器中的规则和字段更新等动作，就无法处理了。此时通过执行脚本触发存储在服务器中的脚本，就能比较好的解决这种复杂逻辑的处理。需要注意的是，因为将这些逻辑都放到脚本中去进行处理了。需要一定的开发能力。
本文主要介绍SDP是如何实现配置执行本地脚本，以及中间参数传递的详细步骤。
1.1 原理
SDP在触发业务规则/自定义触发器时，会生成一个临时的JSON文件，触发此规则的工单的所有信息都会存储在该JSON文件之中，待业务规则/自定义触发器执行完毕后，此文件就会被删除。
执行脚本时带上的这个参数$COMPLETE_V3_JSON_FILE 这个参数的值就是临时JSON文件的路径。
1.2 演示环境
操作系统：Windows 11
SDP版本号：14302 企业版
Python：3.9.13
注：SDP对执行脚本的语言没有限制，SDP只是触发。具体每种语言所需的环境，需要自行配置。
二、配置
2.1 SDP页面配置
以申请虚拟机的场景为例。
某公司H已经使用了SDP系统，之前处理虚拟机申请都是用户直接找到技术员，技术员再创建虚拟机然后给到用户登录信息。
沟通虚拟机配置以及创建虚拟机耗费了技术员大量的时间，想要实现自动化操作。

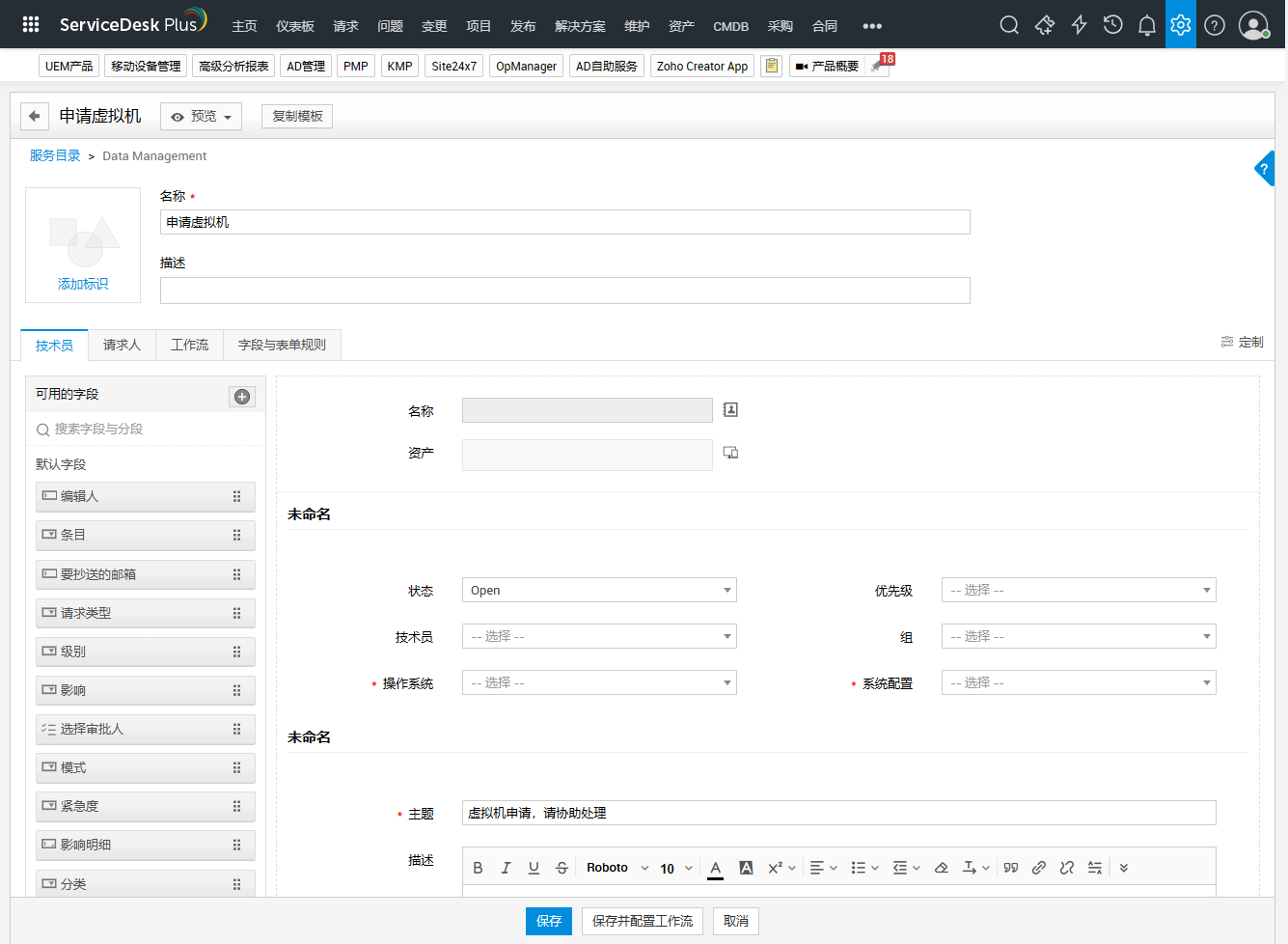

2.1.1 创建虚拟机申请服务模板

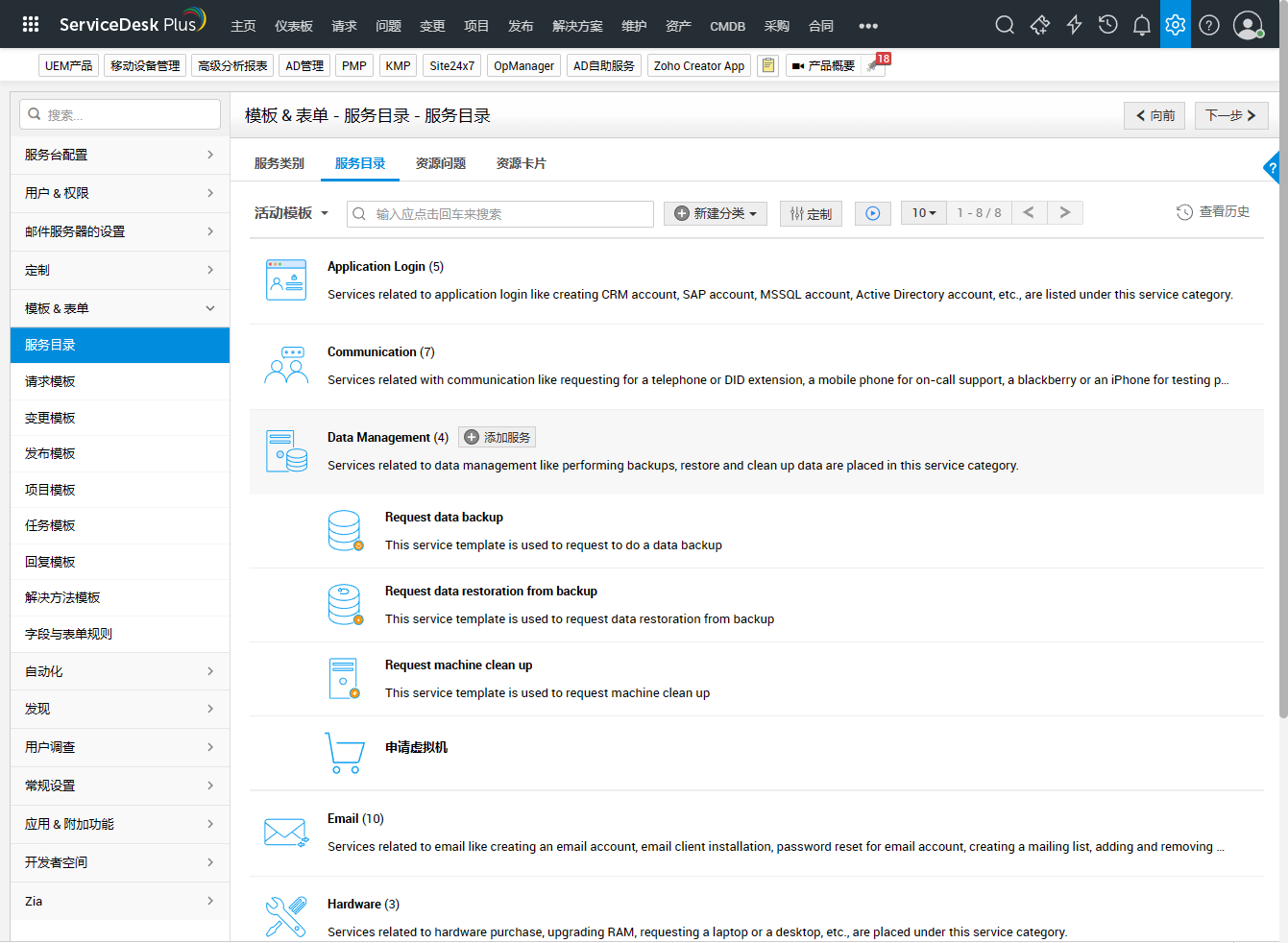

到SDP模板&表单页面，到对应的服务目录下点击添加服务

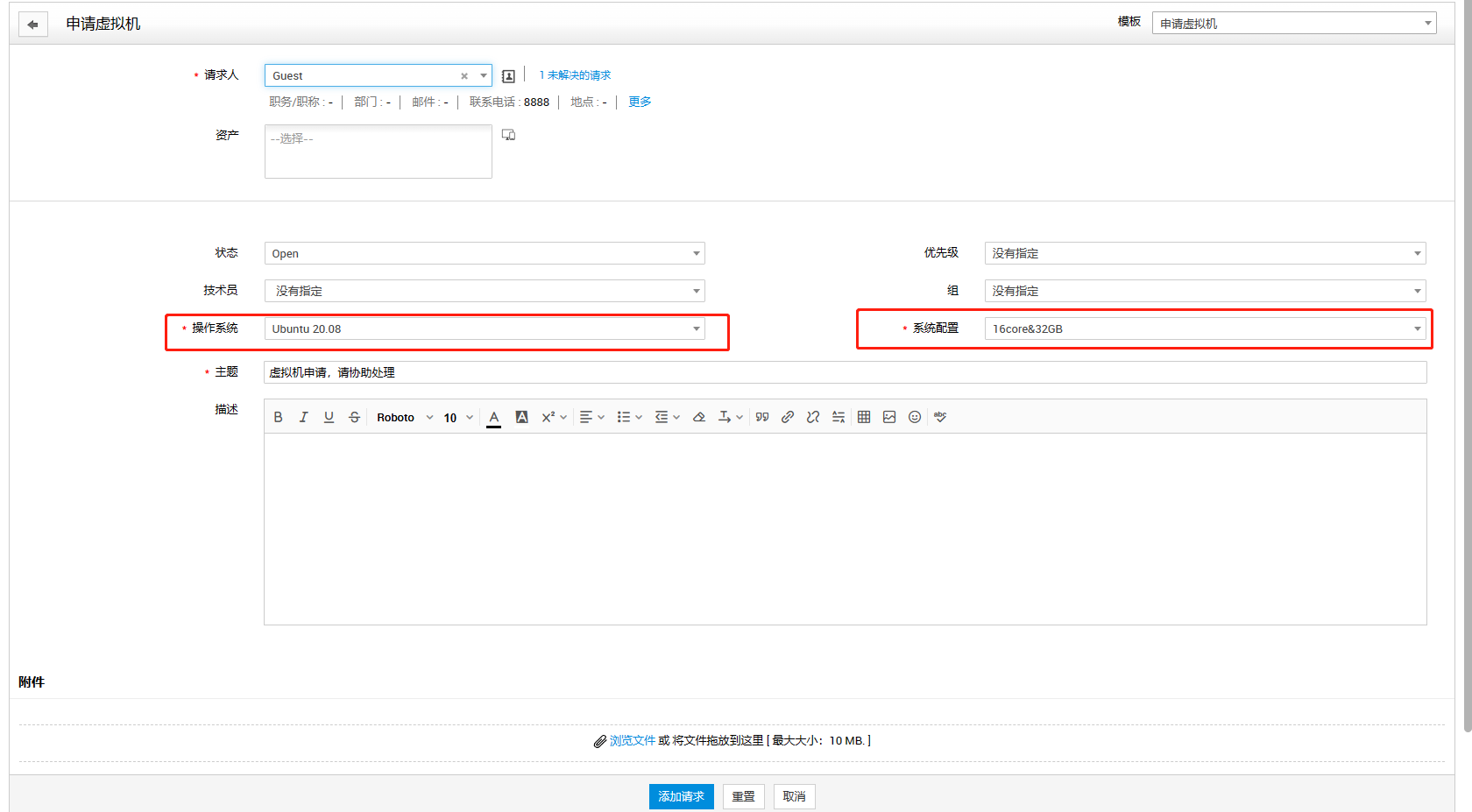

模板如下
2.1.2 创建自定触发器

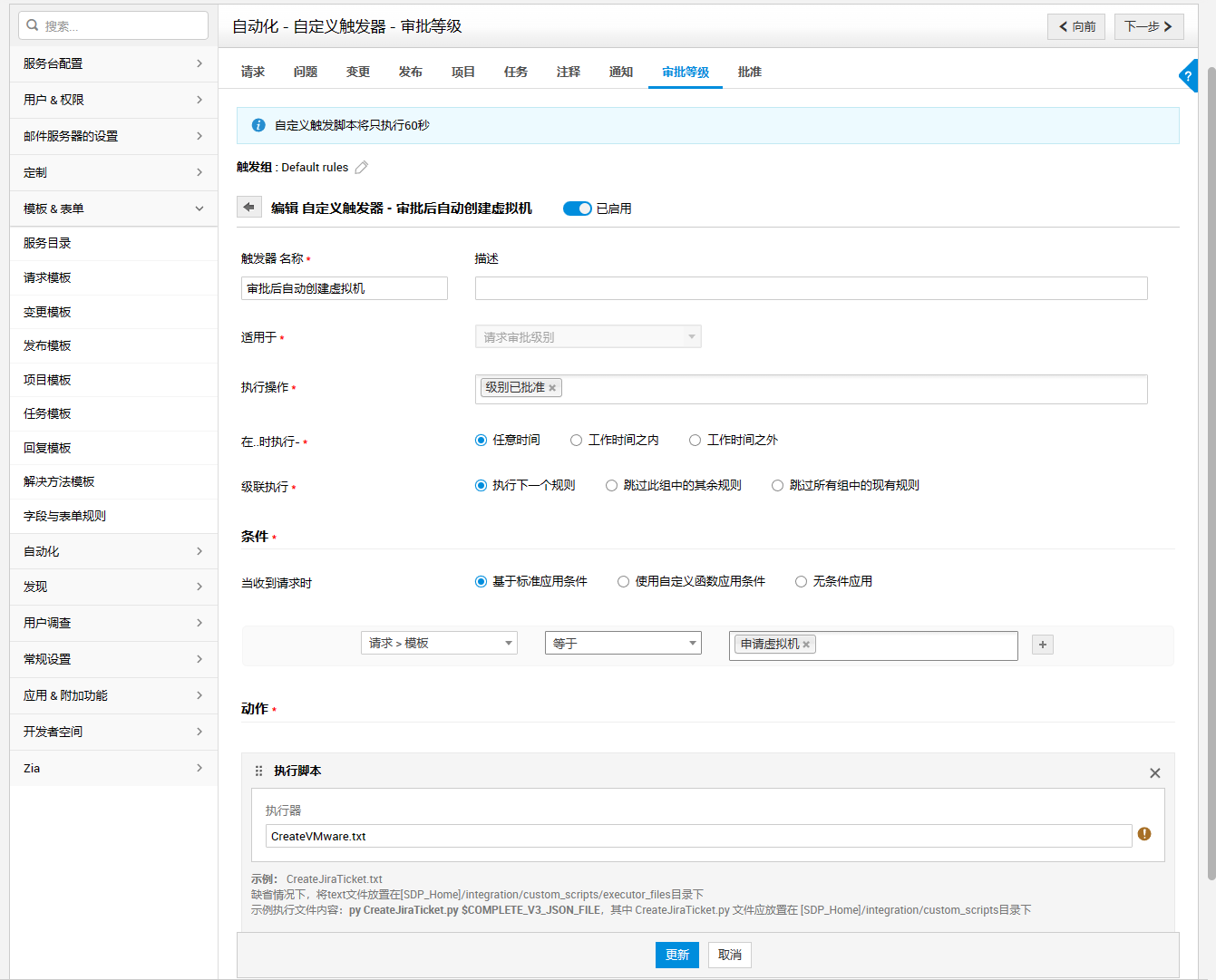

管理>自动化>自定义触发器>审批等级中
新建一条触发器规则，在检测到审批已批准后，判断请求的模板是否是“申请虚拟机”模板，如果是执行CreateVMware.txt文件中的脚本。如下图：
2.2 脚本配置

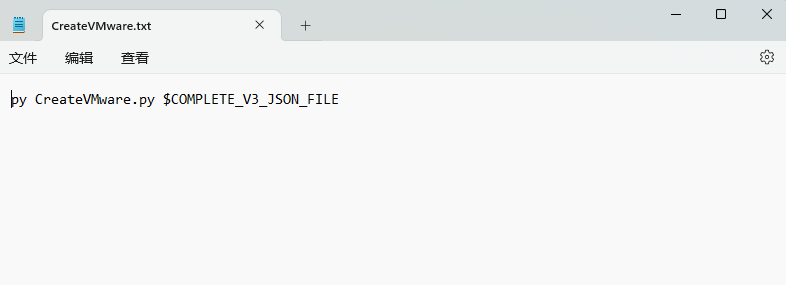

新建CreateVMware.txt文件，将需要SDP执行的命令，放到此文件中。

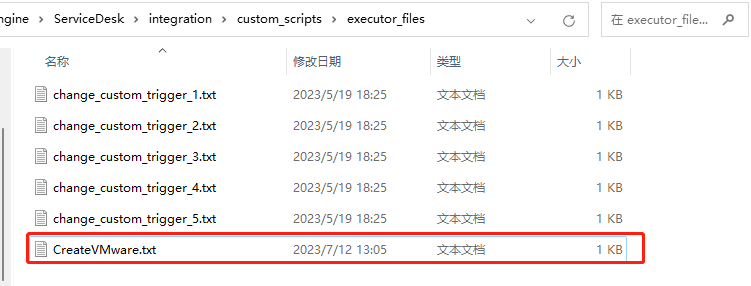

将该txt文件放在SDP安装目录/integration/custom_scripts/executor_files目录下

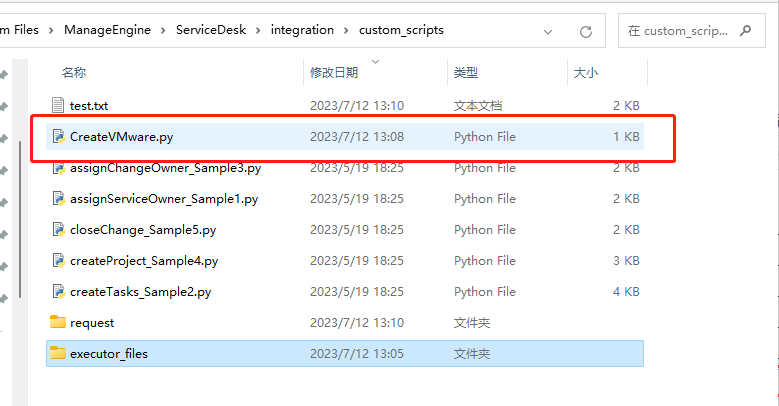

将命令中的脚本文件放在SDP安装目录/integration/custom_scripts目录下
作为测试，脚本内容供参考。
脚本执行的动作：
1、复制JSON临时文件至脚本所在目录（文件名test.txt）以供参考
2、将请求中的操作系统和系统配置字段的信息获取并输出
import sys
import json
#获取参数 $COMPLETE_V3_JSON_FILE
param=sys.argv[1]
#打开参数对应的JSON临时文件
file1 = open(param,'r', encoding="utf-8")
#将临时文件复制一份供参考
txt=file1.readlines()
file2 = open("./test.txt",'w', encoding="utf-8")
file2.write(str(txt))
#以JSON格式读取请求详细信息
RequestData=json.load(open(param, 'r', encoding="utf-8"))
#获取字段的信息其中的udf_pick_99和udf_pick_100需要根据您环境中自定义字段对应的API字段修改
VMsystem=RequestData['approval_level']['request']['udf_fields']['udf_pick_99']
VMConfig=RequestData['approval_level']['request']['udf_fields']['udf_pick_100']
#测试输出
print("VMwaretest executed successful，the Operation system"+VMsystem+",configuration"+VMConfig)
注：脚本的执行情况，以及print输出会记录在工单的历史中。汉字会有乱码的情况，建议输出使用英语
三、测试
用户创建工单，选择所需的虚拟机配置

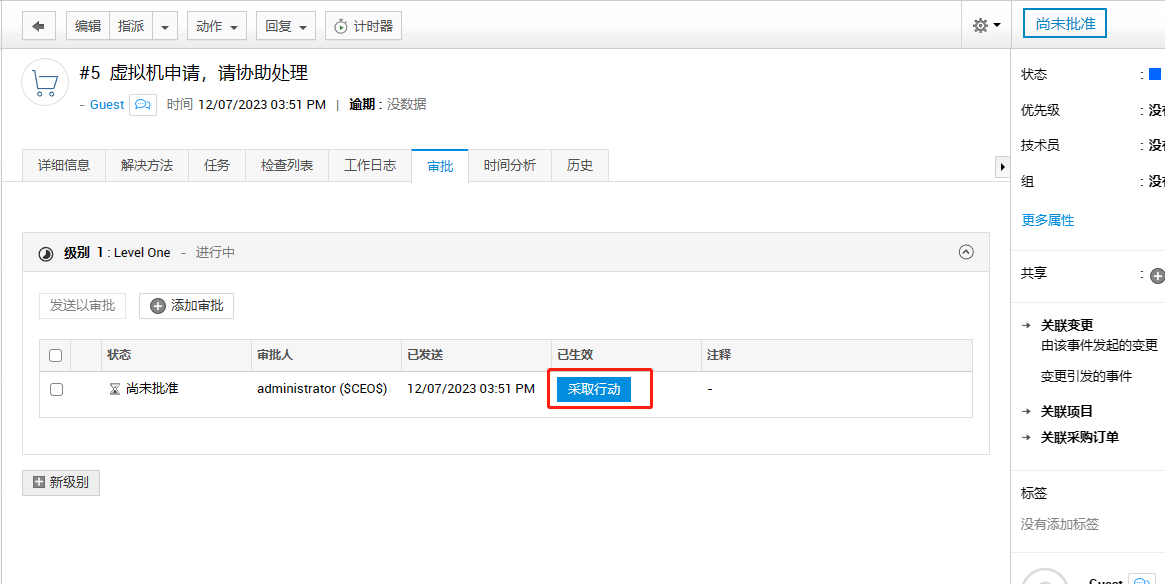

审批人执行审批操作

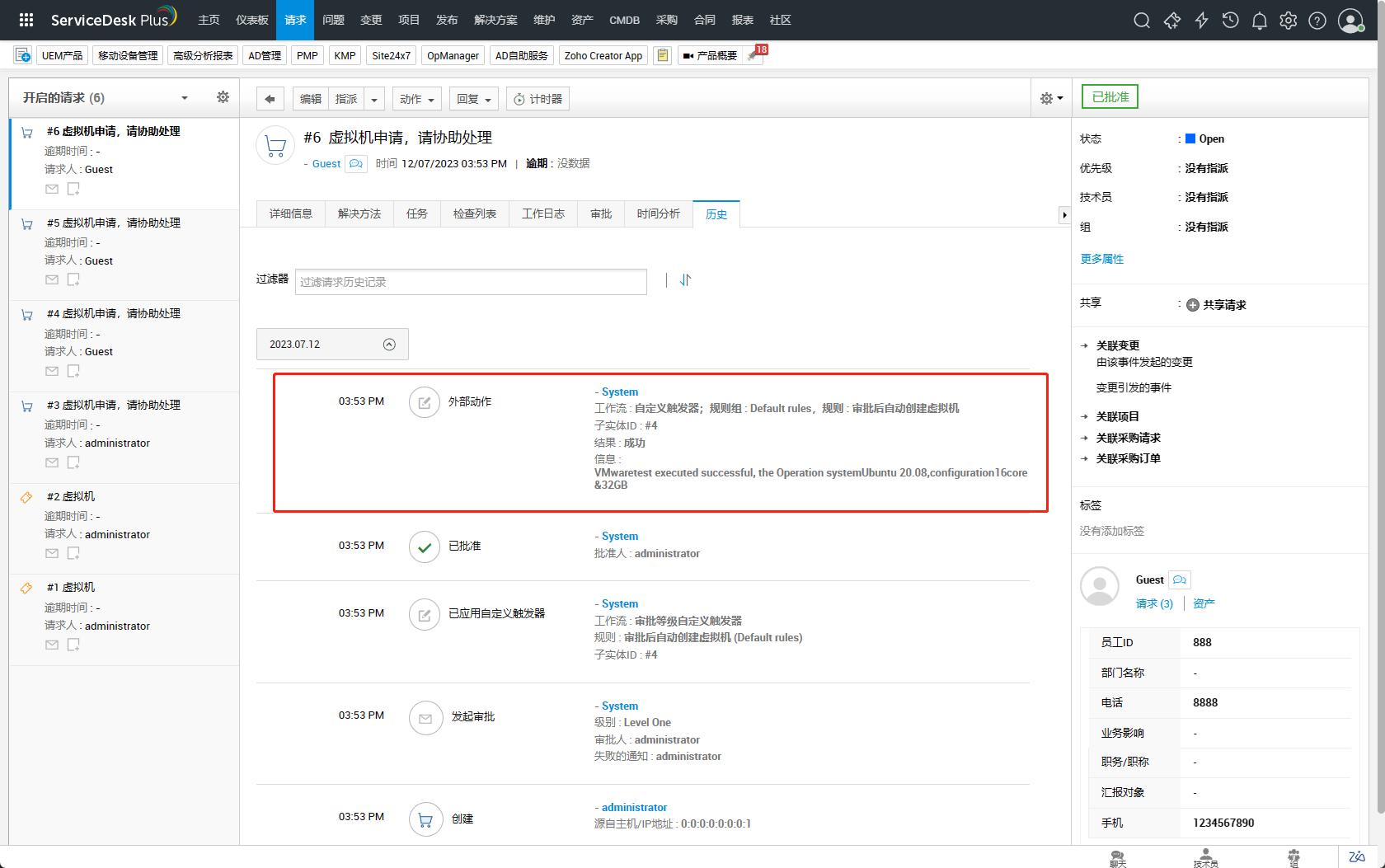

通过历史记录，可以看到脚本执行成功，并正确获取参数

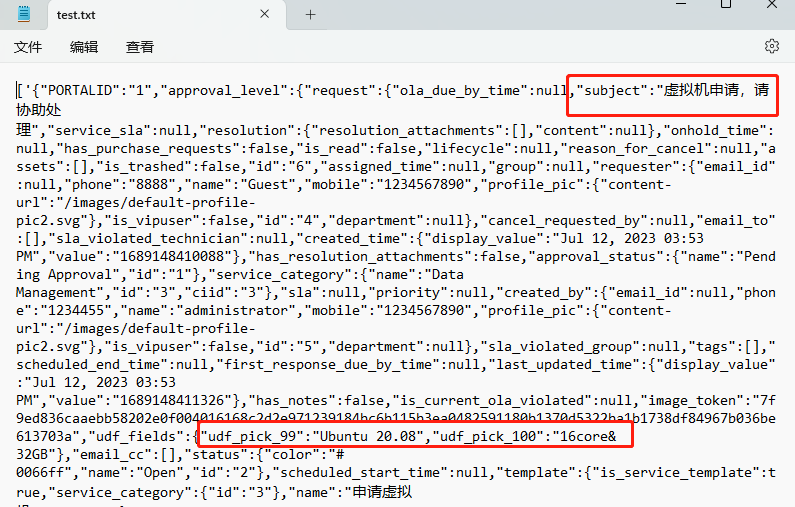

查看脚本目录，复制JSON文件成功。
JSON解析后如下：
{
"PORTALID":"1",
"approval_level":{
"request":{
"ola_due_by_time":null,
"subject":"虚拟机申请，请协助处理",
"service_sla":null,
"resolution":{
"resolution_attachments":[
],
"content":null
},
"onhold_time":null,
"has_purchase_requests":false,
"is_read":false,
"lifecycle":null,
"reason_for_cancel":null,
"assets":[
],
"is_trashed":false,
"id":"6",
"assigned_time":null,
"group":null,
"requester":{
"email_id":null,
"phone":"8888",
"name":"Guest",
"mobile":"1234567890",
"profile_pic":{
"content-url":"/images/default-profile-pic2.svg"
},
"is_vipuser":false,
"id":"4",
"department":null
},
"cancel_requested_by":null,
"email_to":[
],
"sla_violated_technician":null,
"created_time":{
"display_value":"Jul 12, 2023 03:53 PM",
"value":"1689148410088"
},
"has_resolution_attachments":false,
"approval_status":{
"name":"Pending Approval",
"id":"1"
},
"service_category":{
"name":"Data Management",
"id":"3",
"ciid":"3"
},
"sla":null,
"priority":null,
"created_by":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":{
"content-url":"/images/default-profile-pic2.svg"
},
"is_vipuser":false,
"id":"5",
"department":null
},
"sla_violated_group":null,
"tags":[
],
"scheduled_end_time":null,
"first_response_due_by_time":null,
"last_updated_time":{
"display_value":"Jul 12, 2023 03:53 PM",
"value":"1689148411326"
},
"has_notes":false,
"is_current_ola_violated":null,
"image_token":"7f9ed836caaebb58202e0f004016168c2d2e971239184bc6b115b3ea0482591180b1370d5322ba1b1738df84967b036be613703a",
"udf_fields":{
"udf_pick_99":"Ubuntu 20.08",
"udf_pick_100":"16core&32GB"
},
"email_cc":[
],
"status":{
"color":"#0066ff",
"name":"Open",
"id":"2"
},
"scheduled_start_time":null,
"template":{
"is_service_template":true,
"service_category":{
"id":"3"
},
"name":"申请虚拟机",
"id":"63"
},
"primary_asset":null,
"cancel_requested_time":null,
"notification_status":null,
"has_purchase_orders":false,
"description":null,
"has_dependency":false,
"has_conversation":false,
"chat_type":"0",
"callback_url":null,
"is_service_request":true,
"is_shared":false,
"cancel_requested":false,
"has_request_initiated_change":false,
"request_template_task_ids":[
],
"department":null,
"is_reopened":false,
"has_draft":false,
"has_attachments":false,
"has_linked_requests":false,
"resources":{
},
"has_request_caused_by_change":false,
"is_overdue":false,
"technician":null,
"due_by_time":null,
"has_project":false,
"is_first_response_overdue":false,
"cancel_requested_is_pending":false,
"recommend_template":null,
"unreplied_count":null,
"maintenance":null
},
"comments":"根据审批规则审批的等级。",
"change_stage":null,
"level":"1",
"associated_entity":"request",
"purchase_request":null,
"release":null,
"action_taken_by":{
"email_id":null,
"phone":null,
"name":"System",
"mobile":null,
"profile_pic":null,
"is_vipuser":false,
"id":"1",
"department":null
},
"change":null,
"rule":{
"type":"template_configurations",
"value":"first_response"
},
"created_by":{
"email_id":null,
"phone":null,
"name":"System",
"mobile":null,
"profile_pic":null,
"is_vipuser":false,
"id":"1",
"department":null
},
"deleted":false,
"created_on":{
"display_value":"Jul 12, 2023 03:53 PM",
"value":"1689148410403"
},
"purchase_order":null,
"approvals":[
{
"approver":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"comments":"123",
"approval_level":{
"request":{
"id":"6"
},
"change_stage":null,
"level":"1",
"purchase_order":null,
"purchase_request":null,
"release":null,
"change":null,
"name":"Level One",
"id":"4",
"status":{
"id":"2"
}
},
"sent_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148410905"
},
"org_role":{
"name":"CEO",
"id":"3",
"display_name":"$CEO$"
},
"action_by":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"deleted":false,
"sent_by":{
"email_id":null,
"phone":null,
"name":"System",
"mobile":null,
"profile_pic":null,
"is_vipuser":false,
"id":"1",
"department":null
},
"id":"4",
"obo_approver":null,
"email":null,
"key":"9f1572a0-6804-4323-a70f-e1706506eb8b",
"status":{
"name":"Approved",
"id":"2"
},
"action_taken_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148429485"
}
}
],
"name":"Level One",
"id":"4",
"is_current":true,
"action_taken_on":{
"display_value":"Jul 12, 2023 03:53 PM",
"value":"1689148429530"
},
"status":{
"name":"Approved",
"id":"2"
}
},
"LOGGEDIN_USER_TYPE":"System",
"diff":{
"new":{
"comments":"根据审批规则审批的等级。",
"approvals":[
{
"approver":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"comments":"123",
"approval_level":{
"request":{
"id":"6"
},
"change_stage":null,
"level":"1",
"purchase_order":null,
"purchase_request":null,
"release":null,
"change":null,
"name":"Level One",
"id":"4",
"status":{
"id":"2"
}
},
"sent_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148410905"
},
"org_role":{
"name":"CEO",
"id":"3",
"display_name":"$CEO$"
},
"action_by":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"deleted":false,
"sent_by":{
"email_id":null,
"phone":null,
"name":"System",
"mobile":null,
"profile_pic":null,
"is_vipuser":false,
"id":"1",
"department":null
},
"id":"4",
"obo_approver":null,
"email":null,
"key":"9f1572a0-6804-4323-a70f-e1706506eb8b",
"status":{
"name":"Approved",
"id":"2"
},
"action_taken_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148429485"
}
}
],
"id":"4",
"status":{
"name":"Approved",
"id":"2"
},
"action_taken_on":{
"value":"1689148429530"
}
},
"old":{
"comments":null,
"approvals":[
{
"approver":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"comments":"123",
"approval_level":{
"request":{
"id":"6"
},
"change_stage":null,
"level":1,
"purchase_order":null,
"purchase_request":null,
"release":null,
"change":null,
"name":"Level One",
"id":"4",
"status":{
"id":"1"
}
},
"sent_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148410905"
},
"org_role":{
"name":"CEO",
"id":"3",
"display_name":"$CEO$"
},
"action_by":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"deleted":false,
"sent_by":{
"email_id":null,
"phone":null,
"name":"System",
"mobile":null,
"profile_pic":null,
"is_vipuser":false,
"id":"1",
"department":null
},
"id":"4",
"obo_approver":null,
"email":null,
"key":"9f1572a0-6804-4323-a70f-e1706506eb8b",
"status":{
"name":"Approved",
"id":"2"
},
"action_taken_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148429485"
}
}
],
"id":"4",
"status":{
"name":"Pending Approval",
"id":"1"
},
"action_taken_on":{
"value":"1689148410905"
}
}
},
"OPERATION_TYPE":"update",
"LOGGEDIN_USER_NAME":"-",
"LOGIN_NAME":"-",
"LOGIN_USER_ID":"-"
}
"PORTALID":"1",
"approval_level":{
"request":{
"ola_due_by_time":null,
"subject":"虚拟机申请，请协助处理",
"service_sla":null,
"resolution":{
"resolution_attachments":[
],
"content":null
},
"onhold_time":null,
"has_purchase_requests":false,
"is_read":false,
"lifecycle":null,
"reason_for_cancel":null,
"assets":[
],
"is_trashed":false,
"id":"6",
"assigned_time":null,
"group":null,
"requester":{
"email_id":null,
"phone":"8888",
"name":"Guest",
"mobile":"1234567890",
"profile_pic":{
"content-url":"/images/default-profile-pic2.svg"
},
"is_vipuser":false,
"id":"4",
"department":null
},
"cancel_requested_by":null,
"email_to":[
],
"sla_violated_technician":null,
"created_time":{
"display_value":"Jul 12, 2023 03:53 PM",
"value":"1689148410088"
},
"has_resolution_attachments":false,
"approval_status":{
"name":"Pending Approval",
"id":"1"
},
"service_category":{
"name":"Data Management",
"id":"3",
"ciid":"3"
},
"sla":null,
"priority":null,
"created_by":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":{
"content-url":"/images/default-profile-pic2.svg"
},
"is_vipuser":false,
"id":"5",
"department":null
},
"sla_violated_group":null,
"tags":[
],
"scheduled_end_time":null,
"first_response_due_by_time":null,
"last_updated_time":{
"display_value":"Jul 12, 2023 03:53 PM",
"value":"1689148411326"
},
"has_notes":false,
"is_current_ola_violated":null,
"image_token":"7f9ed836caaebb58202e0f004016168c2d2e971239184bc6b115b3ea0482591180b1370d5322ba1b1738df84967b036be613703a",
"udf_fields":{
"udf_pick_99":"Ubuntu 20.08",
"udf_pick_100":"16core&32GB"
},
"email_cc":[
],
"status":{
"color":"#0066ff",
"name":"Open",
"id":"2"
},
"scheduled_start_time":null,
"template":{
"is_service_template":true,
"service_category":{
"id":"3"
},
"name":"申请虚拟机",
"id":"63"
},
"primary_asset":null,
"cancel_requested_time":null,
"notification_status":null,
"has_purchase_orders":false,
"description":null,
"has_dependency":false,
"has_conversation":false,
"chat_type":"0",
"callback_url":null,
"is_service_request":true,
"is_shared":false,
"cancel_requested":false,
"has_request_initiated_change":false,
"request_template_task_ids":[
],
"department":null,
"is_reopened":false,
"has_draft":false,
"has_attachments":false,
"has_linked_requests":false,
"resources":{
},
"has_request_caused_by_change":false,
"is_overdue":false,
"technician":null,
"due_by_time":null,
"has_project":false,
"is_first_response_overdue":false,
"cancel_requested_is_pending":false,
"recommend_template":null,
"unreplied_count":null,
"maintenance":null
},
"comments":"根据审批规则审批的等级。",
"change_stage":null,
"level":"1",
"associated_entity":"request",
"purchase_request":null,
"release":null,
"action_taken_by":{
"email_id":null,
"phone":null,
"name":"System",
"mobile":null,
"profile_pic":null,
"is_vipuser":false,
"id":"1",
"department":null
},
"change":null,
"rule":{
"type":"template_configurations",
"value":"first_response"
},
"created_by":{
"email_id":null,
"phone":null,
"name":"System",
"mobile":null,
"profile_pic":null,
"is_vipuser":false,
"id":"1",
"department":null
},
"deleted":false,
"created_on":{
"display_value":"Jul 12, 2023 03:53 PM",
"value":"1689148410403"
},
"purchase_order":null,
"approvals":[
{
"approver":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"comments":"123",
"approval_level":{
"request":{
"id":"6"
},
"change_stage":null,
"level":"1",
"purchase_order":null,
"purchase_request":null,
"release":null,
"change":null,
"name":"Level One",
"id":"4",
"status":{
"id":"2"
}
},
"sent_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148410905"
},
"org_role":{
"name":"CEO",
"id":"3",
"display_name":"$CEO$"
},
"action_by":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"deleted":false,
"sent_by":{
"email_id":null,
"phone":null,
"name":"System",
"mobile":null,
"profile_pic":null,
"is_vipuser":false,
"id":"1",
"department":null
},
"id":"4",
"obo_approver":null,
"email":null,
"key":"9f1572a0-6804-4323-a70f-e1706506eb8b",
"status":{
"name":"Approved",
"id":"2"
},
"action_taken_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148429485"
}
}
],
"name":"Level One",
"id":"4",
"is_current":true,
"action_taken_on":{
"display_value":"Jul 12, 2023 03:53 PM",
"value":"1689148429530"
},
"status":{
"name":"Approved",
"id":"2"
}
},
"LOGGEDIN_USER_TYPE":"System",
"diff":{
"new":{
"comments":"根据审批规则审批的等级。",
"approvals":[
{
"approver":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"comments":"123",
"approval_level":{
"request":{
"id":"6"
},
"change_stage":null,
"level":"1",
"purchase_order":null,
"purchase_request":null,
"release":null,
"change":null,
"name":"Level One",
"id":"4",
"status":{
"id":"2"
}
},
"sent_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148410905"
},
"org_role":{
"name":"CEO",
"id":"3",
"display_name":"$CEO$"
},
"action_by":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"deleted":false,
"sent_by":{
"email_id":null,
"phone":null,
"name":"System",
"mobile":null,
"profile_pic":null,
"is_vipuser":false,
"id":"1",
"department":null
},
"id":"4",
"obo_approver":null,
"email":null,
"key":"9f1572a0-6804-4323-a70f-e1706506eb8b",
"status":{
"name":"Approved",
"id":"2"
},
"action_taken_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148429485"
}
}
],
"id":"4",
"status":{
"name":"Approved",
"id":"2"
},
"action_taken_on":{
"value":"1689148429530"
}
},
"old":{
"comments":null,
"approvals":[
{
"approver":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"comments":"123",
"approval_level":{
"request":{
"id":"6"
},
"change_stage":null,
"level":1,
"purchase_order":null,
"purchase_request":null,
"release":null,
"change":null,
"name":"Level One",
"id":"4",
"status":{
"id":"1"
}
},
"sent_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148410905"
},
"org_role":{
"name":"CEO",
"id":"3",
"display_name":"$CEO$"
},
"action_by":{
"email_id":null,
"phone":"1234455",
"name":"administrator",
"mobile":"1234567890",
"profile_pic":null,
"is_vipuser":false,
"id":"5",
"department":null
},
"deleted":false,
"sent_by":{
"email_id":null,
"phone":null,
"name":"System",
"mobile":null,
"profile_pic":null,
"is_vipuser":false,
"id":"1",
"department":null
},
"id":"4",
"obo_approver":null,
"email":null,
"key":"9f1572a0-6804-4323-a70f-e1706506eb8b",
"status":{
"name":"Approved",
"id":"2"
},
"action_taken_on":{
"display_value":"12/07/2023 03:53 PM",
"value":"1689148429485"
}
}
],
"id":"4",
"status":{
"name":"Pending Approval",
"id":"1"
},
"action_taken_on":{
"value":"1689148410905"
}
}
},
"OPERATION_TYPE":"update",
"LOGGEDIN_USER_NAME":"-",
"LOGIN_NAME":"-",
"LOGIN_USER_ID":"-"
}
Related Articles
组织业务规则的目的是什么，或者为什么要对业务规则进行编排？
组织（编排）业务规则，可以帮助应用按照顺序来将其应用到请求上。业务规则的制订与编排应确保规则之间不存在冲突，例如第一条业务规则中的条件，不应涵盖第二条业务规则的条件。 下面，我们通过通过一个场景来解释这个过程。 场景 ：分类 硬件维护 拥有2个子分类 - 服务器 和 工作站 。 业务规则配置如下： 当新的请求进入ServiceDesk Plus时执行（即创建时） 如果分类是 硬件维护 ，那么指派给 技术员C ，以及技术支持组 常规 如果分类是 硬件维护 ，且子分类是 工作站 ，那么指派给 ...SDP 业务规则/自定义触发器如何设置排班
简介 不少客户有排班/轮值的场景。本文主要采用自定义函数设置条件，然后在业务规则或自定义触发器中，根据对应条件，执行自定义动作。 比如：针对工单的创建时间，周一是甲支持，周二是乙支持，周三是丙支持。或工作日由甲支持，周末由乙支持。 针对这样的场景，系统默认的无代码的方式无法设置此条件。需要使用Deluge低代码脚本设置条件。 配置一个条件 主要参考Deluge的帮助文档：Date-time functions | Help - Zoho Deluge 配置位置 管理>>开发者空间>>自定义函数 ...Servicedesk 与 Analytics 集成报同步异常解决方法
症状：在成功配置集成信息后，显示同步一段时间，自动报错并且同步状态为失败，重启服务或重新配置均无效。 解决方法： 1、查看日志是否有异常输出： 2020/05/26 14:59:39 CST:Error is :: <nobr>[Line: 8 Field: 2] (-) -ERROR: Invalid NUMBER value</NOBR><br><nobr>The data found at the row 8 has invalid data for the given ...SDP & PMP 集成注意事项
1 要确保PMP和sdp中有一样的管理员 如都具有admin用户（其中sdp上要为其设置SDAdmin权限） 2 确保双方hostname能在双方服务器上互为解析 3 url最好换为ip地址以防解析不到 4 看清需要，如果不是变更处使用PMP的话请不要选择使用变更ID用于验证， 不然关联的ID就不是工单ID而变成变更ID了 注意：如果sdp使用的是https的话需要相应导入证书，不然无法直接集成。 PMP 下设置实际的过滤条件 ...ELA-ELA中告警事件可以生成SDP的工单吗？
EventLog Analyzer支持与ServiceDesk Plus集成，告警事件会自动在工单系统中生成工单，测试如下： 配置如下：
