【OPM】getInterfaceGraphs API使用补充

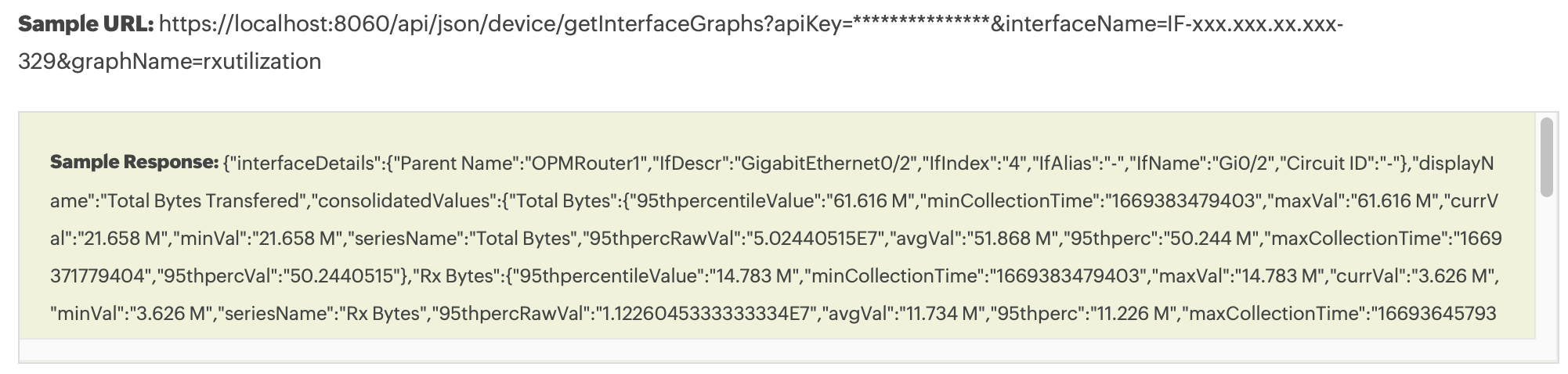

目前getInterfaceGraphs API在手册中的示例和响应有些出入：
按示例格式输入，如：
实际得到的响应为：
{"Rx Utilization":[{"x":1688487291,"y":0},{"x":1688488191,"y":0},{"x":1688489097,"y":0},{"x":1688489994,"y":0},{"x":1688490891,"y":0},{"x":1688491796,"y":0},{"x":1688492691,"y":0},{"x":1688493591,"y":0},{"x":1688494491,"y":0},{"x":1688495391,"y":0},{"x":1688496291,"y":0},{"x":1688497191,"y":0},{"x":1688498106,"y":0},{"x":1688499002,"y":0},{"x":1688499905,"y":0},{"x":1688500806,"y":0},{"x":1688501702,"y":0},{"x":1688502602,"y":0},{"x":1688503502,"y":0},{"x":1688504403,"y":0},{"x":1688505302,"y":0},{"x":1688506203,"y":0},{"x":1688507102,"y":0},{"x":1688508016,"y":0},{"x":1688508906,"y":0},{"x":1688509806,"y":0},{"x":1688510706,"y":0},{"x":1688511632,"y":0},{"x":1688512517,"y":0},{"x":1688513417,"y":0},{"x":1688514317,"y":0},{"x":1688515217,"y":0},{"x":1688516119,"y":0},{"x":1688517017,"y":0},{"x":1688517919,"y":0},{"x":1688518835,"y":0},{"x":1688519730,"y":0},{"x":1688520617,"y":0},{"x":1688521517,"y":0.04},{"x":1688522417,"y":0.04},{"x":1688523317,"y":0.03},{"x":1688524219,"y":0.02},{"x":1688525117,"y":0.03},{"x":1688526019,"y":0.04},{"x":1688526917,"y":0.04},{"x":1688527817,"y":0.04},{"x":1688528723,"y":0.03},{"x":1688529617,"y":0.01},{"x":1688530517,"y":0.01},{"x":1688531417,"y":0.02},{"x":1688532317,"y":0.02},{"x":1688533217,"y":0.02}]}
如想获得示例响应，需要加入isFluidic=true，也就是：

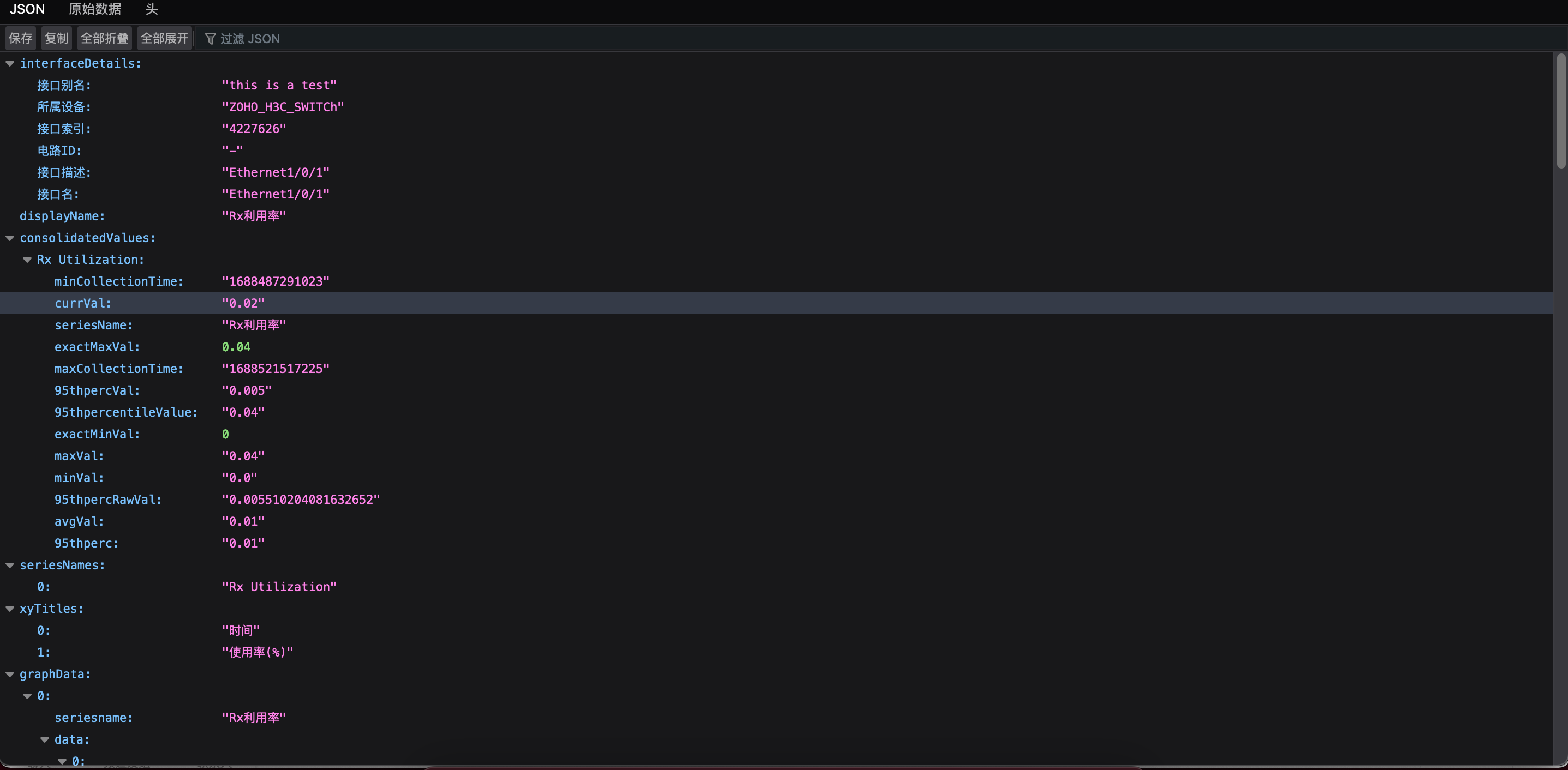

可得到响应：
{"interfaceDetails":{"接口别名":"this is a test","所属设备":"ZOHO_H3C_SWITCh","接口索引":"4227626","电路ID":"-","接口描述":"Ethernet1/0/1","接口名":"Ethernet1/0/1"},"displayName":"Rx利用率","consolidatedValues":{"Rx Utilization":{"minCollectionTime":"1688487291023","currVal":"0.02","seriesName":"Rx利用率","exactMaxVal":0.04,"maxCollectionTime":"1688521517225","95thpercVal":"0.005","95thpercentileValue":"0.04","exactMinVal":0,"maxVal":"0.04","minVal":"0.0","95thpercRawVal":"0.005510204081632652","avgVal":"0.01","95thperc":"0.01"}},"seriesNames":["Rx Utilization"],"xyTitles":["时间","使用率(%)"],"graphData":[{"seriesname":"Rx利用率","data":[[1688487291023,0],[1688488191239,0],[1688489097473,0],[1688489994667,0],[1688490891026,0],[1688491796621,0],[1688492691065,0],[1688493591622,0],[1688494491068,0],[1688495391791,0],[1688496291079,0],[1688497191405,0],[1688498106177,0],[1688499002709,0],[1688499905024,0],[1688500806324,0],[1688501702673,0],[1688502602656,0],[1688503502758,0],[1688504403072,0],[1688505302689,0],[1688506203445,0],[1688507102644,0],[1688508016069,0],[1688508906448,0],[1688509806502,0],[1688510706444,0],[1688511632429,0],[1688512517265,0],[1688513417226,0],[1688514317238,0],[1688515217229,0],[1688516119831,0],[1688517017227,0],[1688517919838,0],[1688518835515,0],[1688519730796,0],[1688520617230,0],[1688521517225,0.04],[1688522417260,0.04],[1688523317248,0.03],[1688524219921,0.02],[1688525117231,0.03],[1688526019616,0.04],[1688526917266,0.04],[1688527817251,0.04],[1688528723279,0.03],[1688529617266,0.01],[1688530517246,0.01],[1688531417238,0.02],[1688532317499,0.02],[1688533217756,0.02]]}],"suffix":""}
